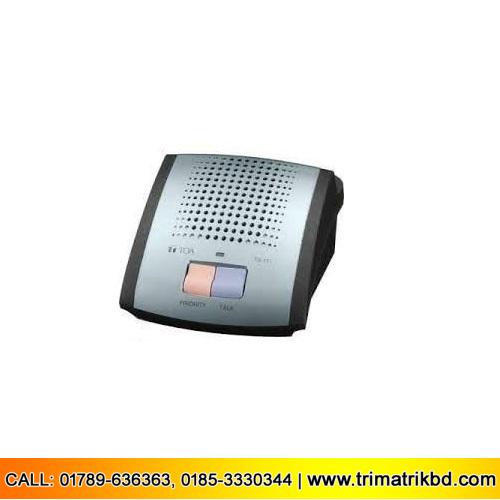

TOA TS-911 Chairman Unit

The TS-911 is a Chairman unit with voting function that can be connected to the conference system by a cable. It is equipped with a priority switch, allowing speech to take precedence over the Delegate unit. The TS-911 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

01711-766062, 01711-461346, 01789-636363

Description

TOA TS-911 Bangladesh

Power Source

24 V DC (supplied from the TS-918 Expansion Unit (option))

Current Consumption

Max. 60 mA

Modulation Method

Frequency modulation

Carrier Frequency

Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Base language channel: 1.95 MHz
Translation language channel: 2.25 MHz

Input

Microphone terminal: XLR-4-31 type
(dedicated for connecting the optional TS-903 or TS-904)

Output

Monitor speaker: 8 Ω, 0.2 W
Headphone: φ3.5 mm mini Jack (3P:monaural) × 2

Connection Terminal

RJ45 connector

LED Indicator

Speech indicator (flashes at communication failure),
Voting status indicators 1 -3, Power indicator (flashes at communication failure)

Function

Monitor volume control, Headphone volume control, Priority speech function,
Voting function, Monitor selector switch (MAIN/SUB)

Operating Temperature

0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)

Operating Humidity

90 %RH or less (no condensation)

Finish

Top panel: ABS resin, gray metallic, paint, semi-gloss

Dimensions

210 (W) × 68.6 (H) × 152 (D) mm (8.27″ × 2.7″ × 5.98″)

Weight

570 g (1.26 lb)

Option

Microphone: TS-903, TS-904 (Select either one.)

TOA TS-911 Bangladesh, Chairman Unit
