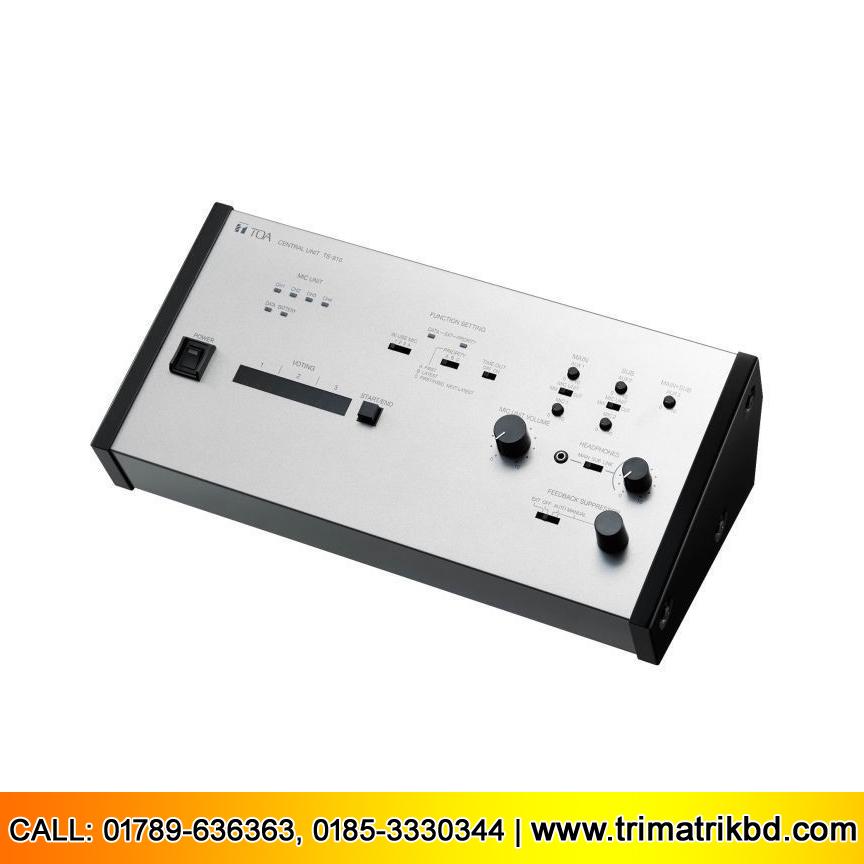

TOA TS-910 Bangladesh
POWER SOURCE | 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter) |
---|---|
POWER CONSUMPTION | 72 W |
CURRENT CONSUMPTION | Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter) |
CARRIER FREQUENCY | Reception: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Transmission: Base language channel: 1.95 MHz Translation language channel: 2.25 MHz |
INPUT | MIC 1 (Base Language): -60 dB*, 600 Ω, unbalanced, φ6.3 mm phone jack (2P) MIC 2 (Translation Language): -60 dB*, 600 Ω, unbalanced, φ6.3 mm phone jack (2P) AUX 1 (Base Language): -20 dB*, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) AUX 2 (Translation Language): -20 dB*, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) AUX 3 (Base and Translation Language): -20 dB*, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) |
OUTPUT | LINE: -20 dB*, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P) REC: -20 dB*, 10 kΩ, unbalanced, φ6.3 mm phone jack (2P), RCA pin jack HEADPHONES: φ3.5 mm mini jack (3P:monaural) |
EXTERNAL EQUALIZER | Input: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Output: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
NUMBER OF CONNECTABLE CHAIRMAN/DELEGATE UNITS | 192 units |
NUMBER OF CONNECTABLE INFRARED TRANSMITTER/RECEIVER UNITS | Up to 4 units (with the use of distributor, up to 16 units connectable when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination) |
INFRARED TRANSMITTER/RECEIVER I/O TERMINAL | BNC jack |
NUMBER OF CONNECTABLE EXPANSION UNIT | 4 units (Up to 8 units connectable when using a distributor) |
LED INDICATOR | Voting result indicators 1 – 3 (7-segment LED, 3 digits), Audio signal receiving indicators 1 – 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (Flashes in case of battery warning of Infrared Conference unit), Short-circuit indicator |
EXTERNAL CONTROL CONNECTION TERMINAL | D-sub connector (9P, male)/USB-B selectable |
FUNCTION SWITCH | Simultaneous speaker No. setting switch: 1/2/3/4 Mic-off setting switch: TIME OUT ON/OFF Speech priority selector switch: A/B/C (A: First-in-first-out priority, B: Last-in-first-out priority, C: Fixed for the first unit, and last-in-first-out for the subsequent units) FBS selector switch: External equalizer/OFF/FBS AUTO/FBS MANUAL |
OPERATING TEMPERATURE | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
OPERATING HUMIDITY | 90 %RH or less (no condensation) |
FINISH | Panel: Surface-treated steel plate, gray metallic, paint, semi-gloss |
WEIGHT | 2.8 kg (6.17 lb) |
ACCESSORY | AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)…1 |
OPTION | Rack mounting bracket: MB-TS900 |
