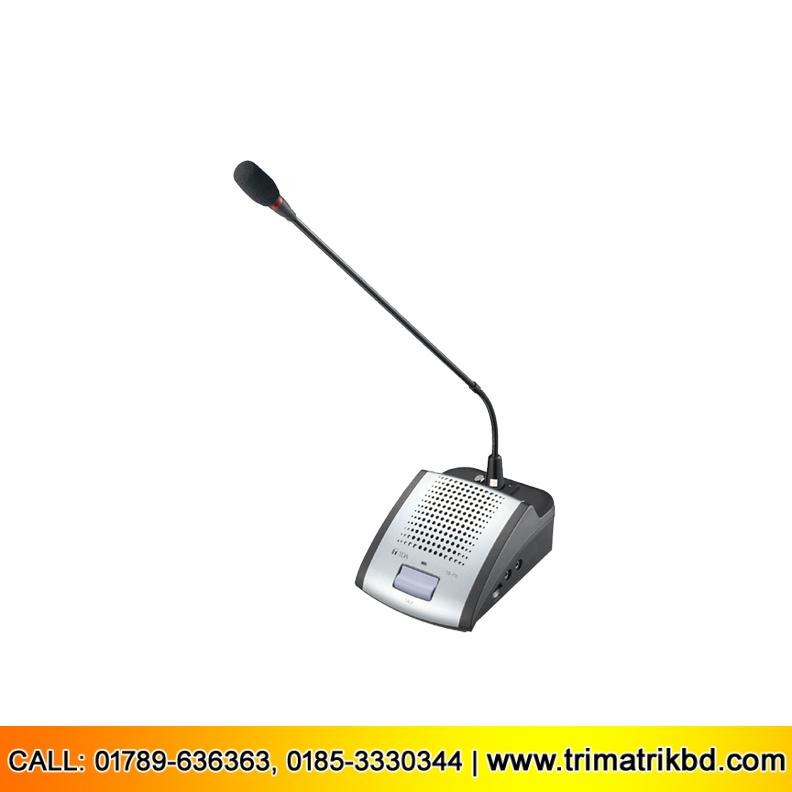

TOA TS-772 Delegate Unit

The TS-772 is a Delegate unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from other conference units to be monitored. Two types of dedicated microphones are made available for the TS-772 as optional products: the TS-773 standard type and the TS-774 long type.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

0185-3330344, 01789-636363, 02-48955951


TOA TS-772 Bangladesh

Power Source

35 V DC, under 30 mA (supplied from Central Unit)


Headphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording),
unbalanced, mini jack (with VR)
Internal speaker: 130 Ω, 200 mW
Contact output: 24 V DC, max. 50 mA


Microphone, speaker on-off control by speech switch

Operating Temperature

0℃ to +40℃ (32゜F to 104゜F)

Operating Humidity

Under 90% RH (no condensation)


Case: ABS resin, black
Panel: ABS resin, gray metallic, semi-gloss, paint


114.5 (W) × 78.4 (H) × 152.9 (D) mm (4.51″ × 3.09″ × 6.02″)


780 g (1.72 lb)


Microphone: TS-773 (standard), TS-774 (long) (select either one)
