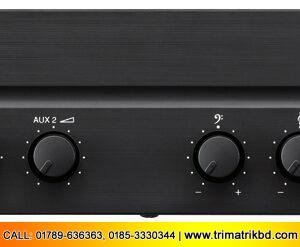

A-2240 Mixer Power Amplifier (CE-AU version)

A-2240 Mixer Power Amplifier (CE-AU version)

The A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

01711-766062, 01711-461346, 01789-636363

Description

A-2240 Mixer Power Amplifier (CE-AU version)

Power Source220 – 240 V AC, or 24 V DC
Rated Output240 W
Power Consumption238 W (EN60065), 15 A (DC operation at rated output)
Frequency Response50 – 20,000 Hz (±3 dB)
Distortion1% or less at 1 kHz, 1/3 rated power
InputMIC 1 – 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Mute: Contact screw terminal (for MIC 1)
OutputSpeaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33″)
High impedance: 42 Ω (100 V), 21 Ω (70 V)
Low impedance: 4 Ω (31 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom PowerDC +21 V (MIC 1)
S/N Ratio60 dB or more
Tone ControlBass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
MutingMIC 1 overrides other input signals with 0 – 30 dB attenuation by mute terminal
contact.
VentilationFan cooling
FinishPanel: ABS resin, black
Case: Steel plate, black
Dimensions420 (W) × 100.9 (H) × 360.3 (D) mm (16.54″ × 3.97″ × 14.19″)
Weight13.2 kg (29.1 lb)
