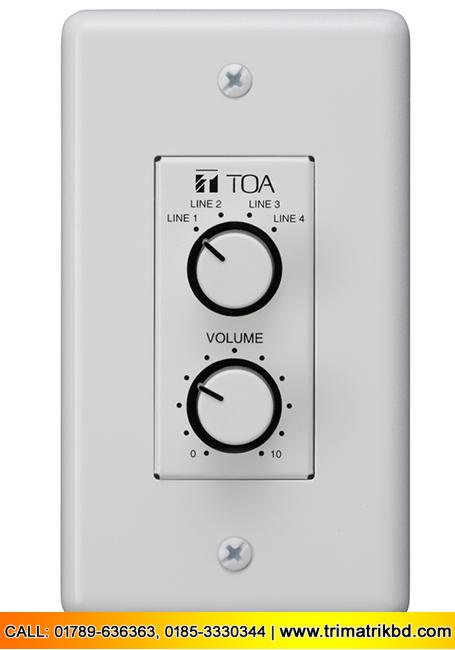

WP-700 Remote Control Panel

WP-700 Remote Control Panel

The WP-700 is a remote control switch/volume panel that is designed for use with the MA-725F (or MM-700F) amplifiers to enable remote selection of input source and adjusting volume level through Ethernet cable connection to the MA-725F (or MM-700F). It can be mounted in a 1-gang electrical box.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

0185-3330344, 01789-636363, 02-48955951


WP-700 Remote Control Panel

Applicable CableCAT5/5e/6 STP cable
Control OperationInput select switch x 1, Volume control knob x 1
TerminalRJ-45 connector
Operation Temperature-10 °C to +40 °C (14 °F to 104 °F)
FinishSurface treated steel plate, white paint (RAL9016)
Dimension72 (W) x 128 (H) x 60 (D) mm (2.83″ x 5.04″ x 2.36″)
Weight210 g (0.463 lb)
AccessoryBox Mounting Screw: No. 6-32UNC x 30 ….. 2
Panel Mounting Screw: No. 6-32UNC x 6 ….. 2
