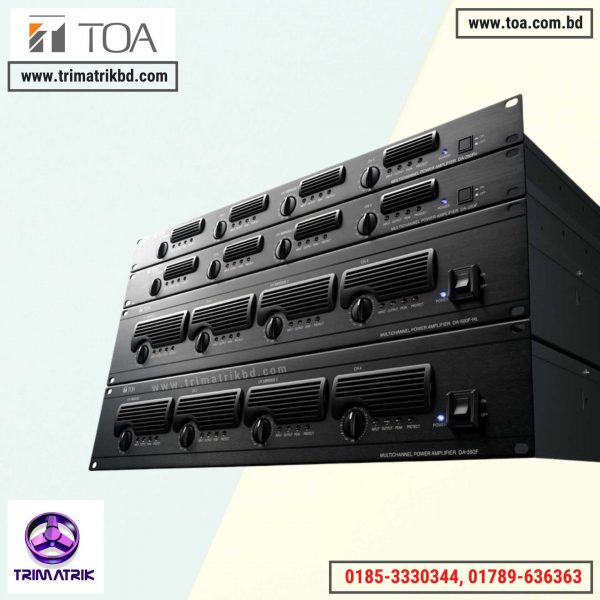

The DA-500FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 500 W × 4 channels (20 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

01711-766062, 01711-461346, 01789-636363

Description

Toa DA-500FH Multichannel Power Amplifier

Power Source220 – 240 V AC, 50/60 Hz
Amplification SystemClass D
Power Consumption460 W (based on EN standards)
2350 W (rated output 100 V line, 20 Ω x 4)
Input4 circuits, +4 dB* (1.23V) (input level control in max. position),
10 kΩ, electronically-balanced, removable terminal block (3 pins),
XLR-3-31 type connector
CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
Rated Output4 channels: 500 W × 4 (100 V line, 20 Ω)
M4 screw terminal, distance between barriers: 8.8 mm (0.35″)
Frequency Response50 Hz – 20 kHz (-3 dB, +1 dB)
Total Harmonic Distortion0.1 % (1 kHz)
0.3 % (100 Hz – 20 kHz)
Protection CircuitProtection against excessive current flow due to overload,
short circuit, unusual DC voltage output
temperature rise at power amp. heat sink (100 °C (212 °F) or more)
temperature rise inside the unit (80 °C (176 °F) or more)
S/N Ratio100 dB (A-weighted)
Crosstalk70 dB (A-weighted)
Control/MonitorControl input: Power ON/OFF status of the individual channels
photocoupler input, drive voltage: 9 V DC (Min) – 14 V (Max), 12 V (Typ)
Monitor output: Power ON/OFF status of the individual channels,
Protection status of the individual channels, Fan operation status
photocoupler open collector output, withstand voltage: 30 V DC,
control current: 12 mA or less
Connector: RJ-45 connector × 2
Connection cable: Shielded Category 5 twisted pair cable for LAN (CAT5-STP)
Maximum cable distance: 600 m (656.17 yd)
LED IndicatorPower (blue) × 1, Input (green) x 4, Output (yellow) x 4, Peak (red) x 4,
Protect (red) × 4
CoolingForced air cooling
Operating Temperature-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishPanel: Aluminum, black, alumite
Case: Plated steel sheet
Dimensions482 (W) × 88.4 (H) × 404.2 (D) mm (18.98 × 3.48″ × 15.91)
Weight9 kg (19.84 lb)
AccessoryPower cord (2 m (6.56 ft)) x 1, Removable terminal plug (3 pins) x 4,
Tamper-proof cap x 4, Rack mounting screw (with washer) x 4
OptionMatching transformer: MT-251H
