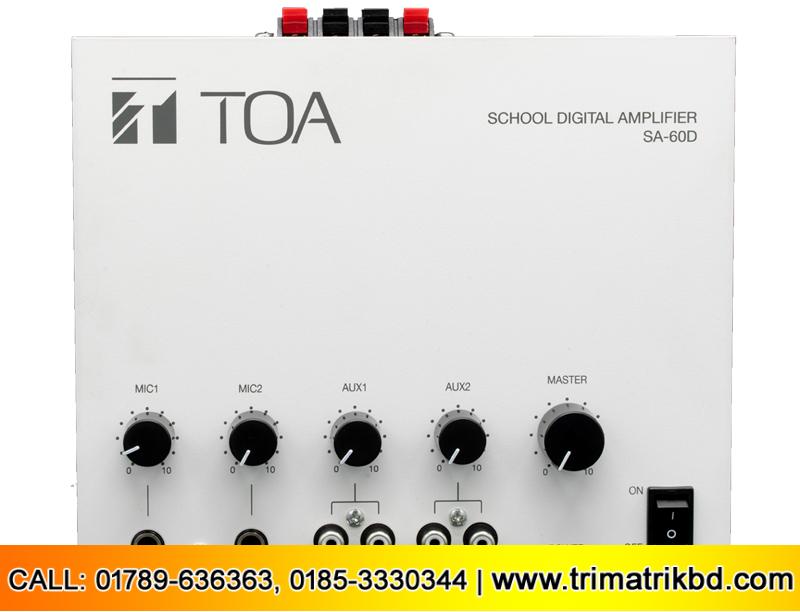

SA-60D School Digital Amplifier

SA-60D School Digital Amplifier

This School Digital Amplifier, SA-60D is a 60W Class D amplifier, is best suited for classroom, training room applications in school. Paired up with 1-2 speakers, a microphone and an external audio device or MP3 player and you are all ready to go. A plus point to note is, this model is designed for both desk-top or wall mount installation.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

01711-766062, 01711-461346, 01789-636363


SA-60D School Digital Amplifier

Power Source220 – 240 V AC, 50/60 Hz
Rated Output60 W
Power Consumption100 W (rated output), 18 W (EN60065)
Frequency Response20 Hz – 20 kHz
Distortion1 % or less
InputMIC 1, 2: -52 dB*, 600 Ω, unbalanced, ø6.3 phone jack (2P)
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
OutputSPEAKER OUT: Low impedance (2 x 8 Ω or 1 x 4 Ω), Push-in terminal
S/N RatioMIC 1, 2: 60 dB or more
AUX 1, 2: 70 dB or more
ProtectionPower Supply Thermal Shut down
Power Amplifier Thermal Shut down
Power Amplifier Over Current
Each protection will be restored automatically
IndicatorPower LED (Blue)
Operating Temperature0 ℃ to +40 ℃
Operating Humidity90 %RH or less (no condensation)
FinishCase: Steel plate, off-white, paint
Knob: ABS resin, black
Dimensions210 (W) × 70.6 (H) × 180 (D) mm
Weight1.6 kg
AccessoryWall Mounting Pattern Paper x 1
