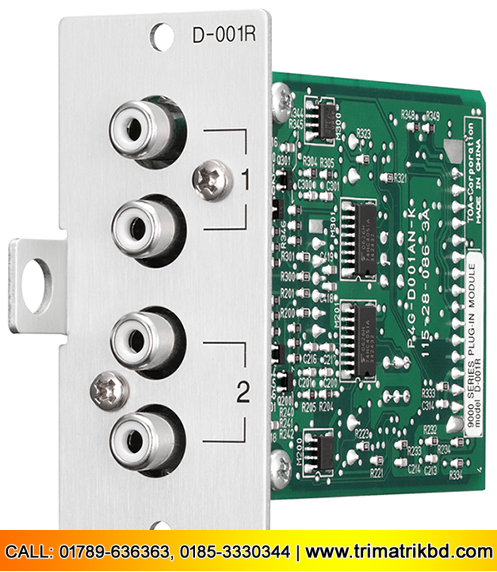

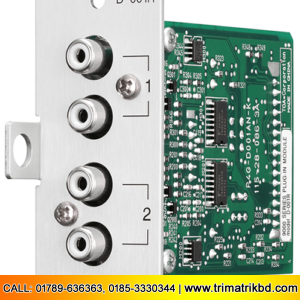

D-001R Line Input Module with DSP

D-001R Line Input Module with DSP

The D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

0185-3330344, 01789-636363, 02-48955951

Description

D-001R Line Input Module with DSP

Power Source+24 V DC, -24 V DC, +6 V DC
Current Consumption20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack
Input Sensitivity-60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Frequency Response20 Hz – 20 kHz, +1, -3 dB
Total Harmonic Distortion + N0.008 % (at 1 kHz, 20 Hz – 20 kHz BPF, Input sensitivity: -10 dB)
S/N Ratio70 dB or more (at 20 Hz – 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Cross Talk75 dB or more (at 20 kHz, Input sensitivity: -10 dB)
A/D Converter24 bit ADC
Sampling Frequency48 kHz
Tone ControlBass: ±12 dB (at 100 Hz)
Treble: ±12 dB (at 10 kHz)
Parametric Equalizer10 bands, Frequency: 20 Hz – 20 kHz, 31 points, Variable range: ±12 dB,
Q: 0.3 – 5
High-pass Filter-12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points
Low-pass Filter-12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points
CompressorDepth: 1 – 5
Operating Temperature-10 ℃ to +40 ℃
FinishPanel: Aluminum, hair-line
Dimensions35 (W) × 78 (H) × 91.5 (D) mm
Weight90 g
AccessoryModule mounting screw …2
