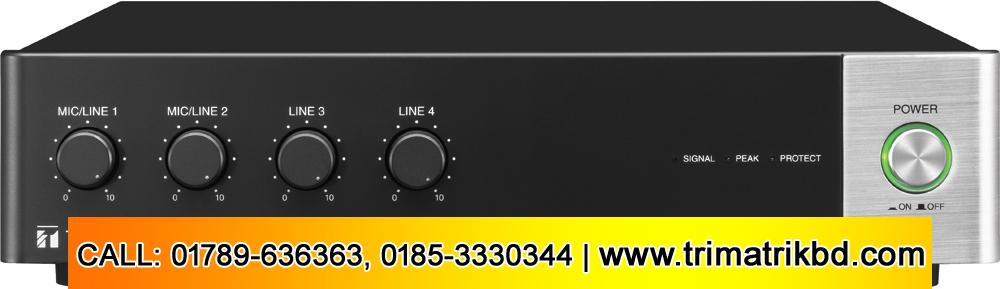

A-5006 Digital Mixer Amplifier

A-5006 Digital Mixer Amplifier

The A-5006 is a half-rack 1-unit size 60 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 Ω) speaker connections. Functions can be set with a PC using the dedicated setting software. The A-5006 is ideal for use as a power amplifier in small commercial facilities and conference rooms. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

0185-3330344, 01789-636363, 02-48955951

Description

A-5006 Digital Mixer Amplifier

Power Source100-240 V AC, 50/60 Hz
Rated Output60 W
Power/Current Consumption106 W (rated output), 20 W (based on cULus standards)
Max. 2 A
Frequency Response50 Hz – 20 kHz (1/8 rated output)
Distortion1 % or less (1 kHz, rated output)
InputINPUT 1, 2: MIC -60 dB(*1)
LINE -20 dB(*1) MIC/LINE selectable
2.2 kΩ, electronically-balanced, removable terminal block (5 pins)
INPUT 3, 4: LINE -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack
OutputSPEAKER: 4 Ω, 70 V (83 Ω), 100 V (170 Ω), removable terminal block (5 pins)
Signal to Noise RatioMIC 1, 2: 50 dB or more
LINE 1 – 4: 70 dB or more
(A-weighted)
FunctionParametric equalizer: 5 points settable on each input and output
20 Hz – 20 kHz ±15 dB
Q: 0.267 – 69.249
Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default)
Threshold, Ratio, Attack time, Release time, and Gain are settable
independently on each input.
ControlMute control, Remote master volume control, Power ON/OFF switch, Ground lift
LED IndicatorPower indicator, Signal indicator, Peak indicator, Protect indicator
Network I/F100BASE-TX
Operating Temperature0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity35 % to 80 %RH (no condensation)
FinishPanel: PS resin, black
Case: Surface-treated steel plate, black, paint
Dimensions210 (W) × 52.5 (H) × 375 (D) mm (8.27 × 2.07″ × 14.76″)”
Weight3.6 kg (7.94 lb)
AccessoryCD (setting software) …1, Large type removable terminal plug (5 pins) …1, Small type removable terminal plug (5 pins) …2, Plain washer (*2) …6, Bracket mounting screw (M3 x 10) (*2) …6, Power supply cord (2 m (6.56 ft)) …1
OptionHalf width blank panel: MB-15B-BK (for rack mounting one A-5006 unit) (*2)
Rack joint bracket: MB-15B-J (for rack mounting two A-5006 units) (*2)
Rack runner: YA-706
