Description

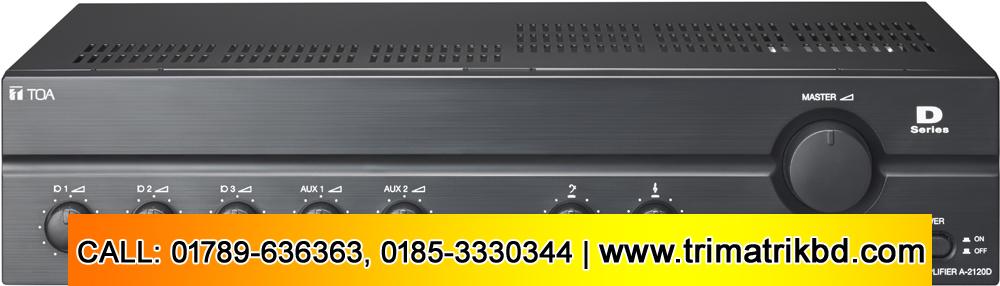

A-2120D Digital PA Amplifier (CE Version)
Power Source | 220 – 240 V, 50/60Hz |
---|---|
Rated Output | 120 W |
Power Consumption | 34 W (AC operation at 1/8 maximum output without clip) |
Frequency Response | 50 – 20,000 Hz, ±3 dB |
Distortion | Under 1% at 1 kHz, 1/3 rated power |
Input | MIC 1-3: -60 dB*, 600 Ω, balanced, 3P XLR AUX 1-2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
Output | Speaker out: Balanced (floating) High impedance: 83 Ω (100 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
Phantom Power | DC +21 V (MIC 1) |
S/N Ratio | Over 60 dB |
Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
Muting | MIC 1: Mutes other input signals by 0-30 dB attenuation |
Indicator | Power LED, peak LED, signal LED |
Finish | Panel: ABS resin, black Case: Steel plate, black |
Dimensions | 420 (W) × 100.6 (H) × 280.3 (D) mm (16.54″ × 3.96″ × 11.04″) |
Weight | 4.0 kg (8.88 lb) |
