TOA TS-680 Central Unit

TOA TS-680 Central Unit

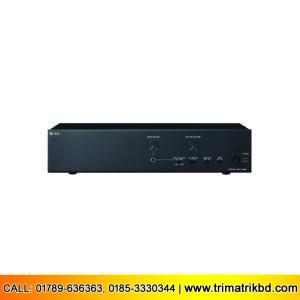

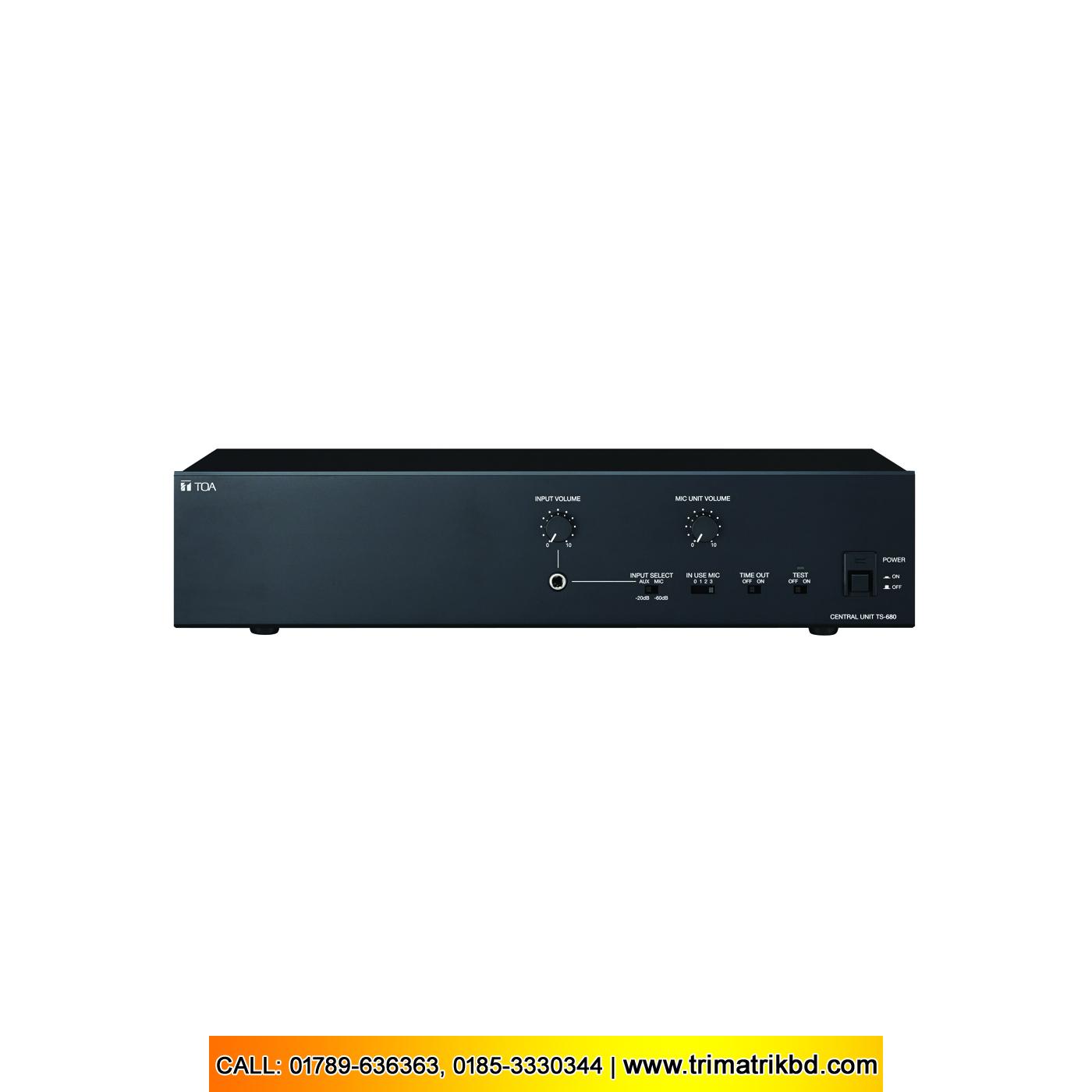

The TS-680 is a Central Unit for TOA Conference System, TS-680 Series. Use of its line connection terminals permits connections to the conference units of TS-681L & TS-682L, making up a conference system. With the use of an optional rack mounting bracket, it can be mounted in a EIA Standard equipment rack, occupying 2 unit size.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

01711-766062, 01711-461346, 01789-636363

Description

TOA TS-680 Central Unit in Bangladesh

Power Source220 – 240 V AC, 50/60 Hz
Power Consumption20 W
Rated Output36 V DC, 480 mA
InputSelectable MIC or AUX
Mic: -60dB*, 600 Ω, unbalanced, phone jack
AUX: -20 dB*, 10 kΩ, unbalanced, phone jack
OutputRecording: -20dB*, 10 kΩ, unbalanced, RCA jack
Number of Connectable UnitsMax. 24 units
ControlPriority speech chime: Operation of TS-681L’s priority key activates a single-tone chime
Speaker restriction: Number of simultaneously-usable TS-682L can be set up to 0-3
Automatic Mic-Off Function: OFF, 30s (selectable)
Operating Temperature0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishPanel: Aluminum, black. 30% gloss, paint
Case: Steel plate, black, 30% gloss, paint
Dimensions420(W) x 96.1 (H) x 222.5(D) mm (16.54” x 3.78” x 8.76”)
Weight2.7 kg (5.95 lb)
AccessoryPower Cord (2m) x 1
OptionExtension cord: YR-780-2M, YR-780-10M
Rack mounting bracket: MB-23B
TOA TS-680 Bangladesh
TOA TS-680 Bangladesh

TOA TS-680 Bangladesh

The TS-680 is a Central Unit for TOA Conference System, TS-680 Series. Use of its line connection terminals permits connections to the conference units of TS-681L & TS-682L, making up a conference system. With the use of an optional rack mounting bracket, it can be mounted in a EIA Standard equipment rack, occupying 2 unit size.

Specifications

Power Source220 – 240 V AC, 50/60 Hz
Power Consumption20 W
Rated Output36 V DC, 480 mA
InputSelectable MIC or AUX
Mic: -60dB*, 600 Ω, unbalanced, phone jack
AUX: -20 dB*, 10 kΩ, unbalanced, phone jack
OutputRecording: -20dB*, 10 kΩ, unbalanced, RCA jack
Number of Connectable UnitsMax. 24 units
ControlPriority speech chime: Operation of TS-681L’s priority key activates a single-tone chime
Speaker restriction: Number of simultaneously-usable TS-682L can be set up to 0-3
Automatic Mic-Off Function: OFF, 30s (selectable)
Operating Temperature0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishPanel: Aluminum, black. 30% gloss, paint
Case: Steel plate, black, 30% gloss, paint
Dimensions420(W) x 96.1 (H) x 222.5(D) mm (16.54” x 3.78” x 8.76”)
Weight2.7 kg (5.95 lb)
AccessoryPower Cord (2m) x 1
OptionExtension cord: YR-780-2M, YR-780-10M
Rack mounting bracket: MB-23B



TOA TS-681L Chairman Unit with Long Microphone

The TS-681L is a Chairman unit of the TOA conference system, TS-680 Series of which compact and lightweight design makes it easy to install and store. Placing the talk key in ON position allows a chairman to speak and disable the speaker to prevent feedback. If the talk key is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from other conference units to be monitored. Priority key on the chairman unit allows chairman to take precedence over any delegate units. And the TS-681L Chairman Unit comes with a long microphone as a standard accessory.

TOA TS-681L Bangladesh
TOA TS-681L Bangladesh

Specifications

Power Source36 V DC, 30 mA or less (supplied from the Central Unit TS-680)
OutputHeadphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording),
unbalanced, mini jack (with Volume control)
Internal speaker: 130 Ω, 200 mW (with Volume control)
ControlTalk Key: Microphone, speaker on-off control by talk key
Priority button: Microphone, speaker on-off, other microphone cutoff, and
single-tone chime activation
Volume control: Headphone output and internal speaker volume adjustable
Microphone Unit
(Accessory)
Electret Condenser Microphone
Directivity: Unidirectional
Impedance: 1.8kΩ
Sensitivity:  -37dB (1kHz 0dB = 1V/Pa)
Frequency Response: 100Hz – 13 kHz
Length: 518mm
Weight: 105g (0.23 lb)
Operating Temperature0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishABS resin, black, paint
Dimensions145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72″ × 2.78″ × 5.93″)
(Excluding Microphone Unit)
Weight800 g (1.76 lb) (Excluding Microphone Unit)
AccessoryLong Microphone Unit x 1
OptionExtension cord: YR-780-2M, YR-780-10M



TOA TS-682L Delegate Unit with Long Microphone

The TS-682L is a Delegate unit of the TOA conference system, TS-680 Series of which compact and lightweight design makes it easy to install and store. Placing the talk key in ON position permits speech and disable the speaker to prevent feedback. If the talk key is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from other conference units to be monitored. And the TS-682L Delegate Unit comes with a long microphone as a standard accessory.

TOA TS-682L Bangladesh
TOA TS-682L Bangladesh

Specifications

Power Source36 V DC, 30 mA or less (supplied from the Central Unit TS-680)
OutputHeadphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording),
unbalanced, mini jack (with Volume control)
Internal speaker: 130 Ω, 200 mW (with Volume control)
ControlTalk Key: Microphone, speaker on-off control by talk key
Volume control: Headphone output and internal speaker volume adjustable
Microphone Unit
(Accessory)
Electret Condenser Microphone
Directivity: Unidirectional
Impedance: 1.8kΩ
Sensitivity:  -37dB (1kHz 0dB = 1V/Pa)
Frequency Response: 100Hz – 13 kHz
Length: 518mm
Weight: 105g (0.23 lb)
Operating Temperature0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishABS resin, black, paint
Dimensions145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72″ × 2.78″ × 5.93″)
(Excluding Microphone Unit)
Weight800 g (1.76 lb) (Excluding Microphone Unit)
AccessoryLong Microphone Unit x 1
OptionExtension cord: YR-780-2M, YR-780-10M
